Magnehelic Gauge Wholesale Suppliers - Enviro Tech Industrial Products Delhi India

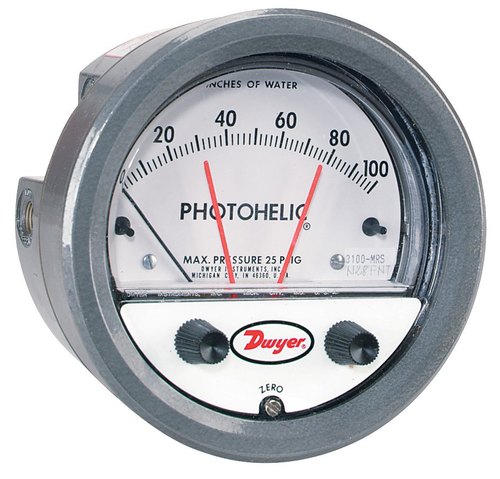

Photohelic Switch/Gauges:

Photohelic® Switch/Gauges: Combines Differential Pressure Gage with Low/High Set points

Dwyer Make Magnehelic Differential Pressure Gauge:

Our specialization lies in offering a commendable range of Dwyer Make Magnehelic Gauge Series 2000. Manufactured with utmost care and precision at our vendors end using superb quality components, our offered product is highly acclaimed in the market. After being manufactured, the offered product is properly tested on defined parameters. Clients can avail the entire range from us in various Technical Specifications at industry leading prices.

Features:

• Compact size
• Accuracy
• Easy installation

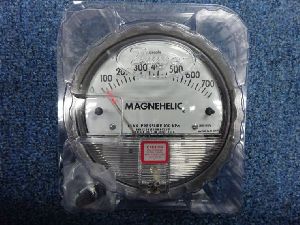

Industrial Magnehelic Gauges

We are the leading manufacturer and exporter of a quality tested assortment of Industrial Magnehelic Gauges. Our range is widely used in checking the automatic valves and gas-air ratio controls, further in medical equipments also to monitor blood and respiratory pressures. Besides it is used to measure the fan and blow pressures, liquid levels and pressures in fluidic systems. Operated by a diaphragm our product is low in cost and is available in different specifications ranging from

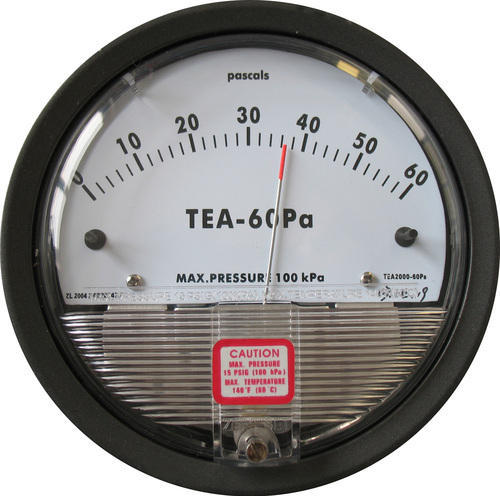

Magnehelic Gauge

Having vast experience in the relevant industry we are engaged in providing a broad assortment of Magnehelic Gauge that is assemble in order to meet specific demands of customers. Moreover, a series of quality tests is performed on offered gauge to ensure a defect free delivery at clients end. Clients can avail the offered range from us at market leading prices within stipulated time frame.

Features:

• Accuracy

• High functionality

• Long service life

Specifications:

• We provide magnehelic gauge of series which is low in cost, diaphragm operated and differential pressure gauge

• Owing to these features these are used in applications for measuring positive, negative, or differential pressure with an accuracy of 2%

• Besides, these are also applied for monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors cabinet purging and many others

• We offer magnehelic differential pressure gauges which run on air and non-combustible compatible gases and are offered with the option of natural gas

• In addition to this these housing are fabricated by using die cast aluminum case and bezel with acrylic cover

• These have exterior finish with grey color to withstand 168 hour salt spray corrosion test

Specifications:

• Accuracy: ±2% of full scale (±3% on - 0, -100 Pa, -125 Pa, 10MM and ±4% on - 00, -60 Pa, -6MM ranges) throughout range at 70°F (21.1°C)

• Pressure Limits: -20 Hg. to 15 psig.† (-0.677 bar to 1.034 bar); MP option

• HP option: 35 psig (2.41 bar) 80 psig (5.52 bar)

• Overpressure: Relief plug opens at approximately 25 psig (1.72 bar) standard gages only

• Temperature Limits: 20 to 140°F.* (-6.67 to 60°C)

• Size: 4 (101.6 mm) Diameter dial face

• Mounting Orientation: Diaphragm in vertical position Consult factory for

• Process Connections: 1/8 female NPT duplicate high and low pressure taps one pair side and one pair back

• Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g)

• Other position orientations

Applications:

• Filter Status

• Duct Static Pressure

• Clean Room Pressure

• Building Pressure

• Fan and Blower Pressure

• Paint Booths

• Dust Collectors

• Glove Box Pressure

• Bubbler Systems

• Cabinet Purging

Magnehelic Differential Pressure Gauge

We offer magnehelic differential pressure gauges which run on air and non-combustible compatible gases and are offered with the option of natural gas. In addition to this, these housing are fabricated by using die cast aluminum case and bezel, with acrylic cover. These have exterior finish with grey color to withstand 168 hour salt spray corrosion test.
